Sandwich Silent Saw Blank
Like the structure of sandwich,the sandwich silent saw blank consists of two pieces of steel sheet and a ayer of denoising medium,this kind of saw blank has a obvious denoising performance during cutting.
Product Details
Like the structure of sandwich,the sandwich silent saw blank consists of two pieces of steel sheet and a ayer of denoising medium,this kind of saw blank has a obvious denoising performance during cutting.

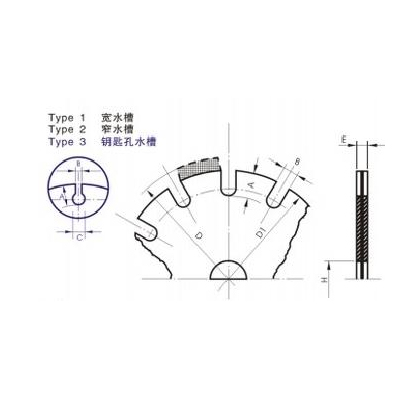

THE TABLE FOR THE SANDWICH SILENT SAW BLANK 硬度：激光焊接HRC36±3/高频焊接HRC43±2
| 规格 D | 尺寸 D1 | 中孔 H | 厚度 E | 齿数 | 槽深 A | 槽宽 B | 法兰盘 Testing Flange |
| z | |||||||
| 200 | 190 | 13 | 75 | ||||
| 1.8/1.6 | 14 | ||||||
| 20 | |||||||
| 25.4 | |||||||
| 50 | 3 | ||||||
| 60 | |||||||
| 230 | 215 | 16 | 75 | ||||
| 250 | 240 | 17 | 75 | ||||
| 300 | 290 | 2.2/1.8 | 21 | 100 | |||
| 18 | |||||||
| 350 | 340 | 2.4/2.2 | 24 | 100 | |||
| 400 | 390 | 2.8/2.5 | 28 | 125 | |||
| 450 | 440 | 2.8/2.6 | 32 | 125 | |||
| 500 | 490 | 3.2/2.8 | 36 | 125 | |||
| 600 | 590 | 4.2/3.5 | 42 | 150 | |||
| 700 | 690 | 4.5/4.0 | 45 | 175 | |||
| 27 | |||||||
| 60 | |||||||
| 70 | |||||||
| 80 | |||||||
| 100 | |||||||
| 120 | |||||||
| 800 | 790 | 4.5 | 46 | 200 | |||
| 20 | 5 | ||||||
| 900 | 864 | 5.0/4.5 | 50 | 250 | |||
| 1000 | 984 | 56 | 250 | ||||
| 1100 | 1084 | 5.5/5.0 | 74 | 250 | |||
| 24 | 12 | ||||||
| 1200 | 1184 | 80 | 250 | ||||
| 1300 | 1284 | 6.0/5.5 | 84 | 300 | |||
| 1400 | 1384 | 92 | 300 | ||||
| 1600 | 1584 | 6.5 | 108 | 300 | |||
| 1800 | 1784 | 7.22 | 118 | 300 |

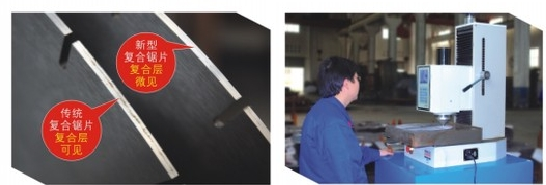

1Three layers jointed more tightly 2More regular hardness 3Better denoising effect
4Shorter lead time 5Higher welding intensity 6Better anti-rust performance
