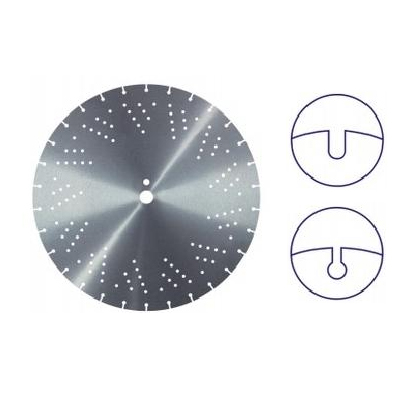

Normal Concrete Pavement Cutting Saw Blanks

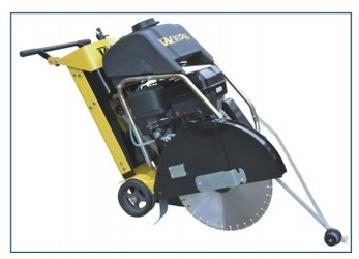

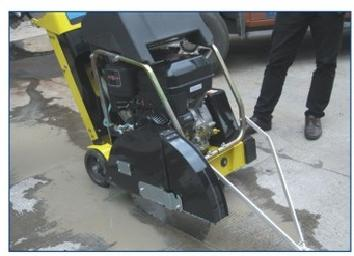

It is used for cutting solid ,worn concrete pavement with a performance of sharp,stable and super-long life.It is applicable for 35-65p electric saw machine,20-45p saw machine drived by petrol engine
Product Details
It is used for cutting solid ,worn concrete pavement with a performance of sharp,stable and super-long life.It is applicable for 35-65p electric saw machine,20-45p saw machine drived by petrol engine
THE TABLE FOR NORMAL CONCRETE PAVEMENT CUTTING SAW BLANKS 硬度：激光焊接HRC36±3/高频焊接HRC43±2
| 型号 JYGQ | 规格 | 尺寸 D1 | 中孔 H | 厚度 E | 齿数 Z | 槽深 A | 槽宽 B | 法兰盘 Testing Flange |
| D | ||||||||
| JYGM C350 | 350 | 340 | 24 | 18 | 3 | 100 | ||
| 22.23 | ||||||||
| 25.4 35 50 60 | ||||||||
| 2.2-4.0 | ||||||||
| JYGM C400 | 400 | 390 | 28 | 18 | 3 | 125 | ||
| JYGM C450 | 450 | 440 | 32 | 18 | 3 | 125 | ||
| JYGM C500 | 500 | 490 | 36 | 18 | 3 | 125 | ||
| JYGM C600 | 600 | 590 | 42 | 18 | 3 | 150 | ||
| JYGM C650 | 650 | 640 | 45 | 18 | 3 | 175 | ||
| JYGMD 700 | 700 | 690 | 50 | 18 | 3 | 175 | ||
| JYGMC 800 | 800 | 784 | 52 | 15 | 7 | 200 | ||
| JYGMD 900 | 900 | 884 | 59 | 15 | 7 | 250 |
Other sizes are available on request
REMARK:

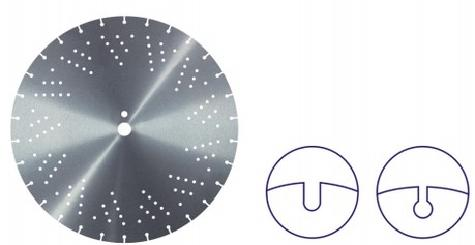

1、The blanks below φ750mm are with keyslots,the above are wide slots.
2、You can customize otherslot type,central hole and laser-cutting line design.
