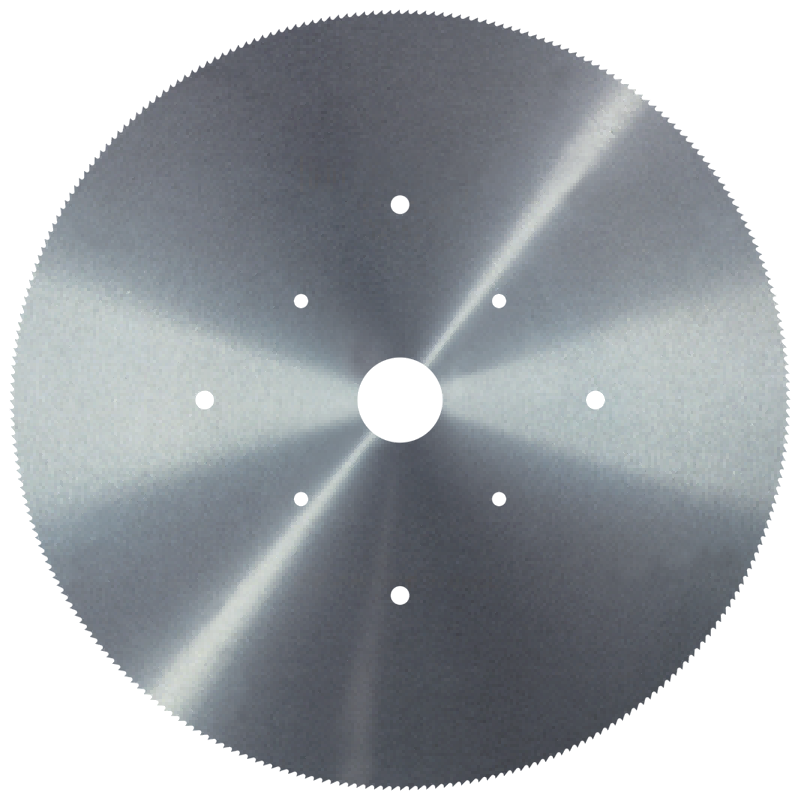

Friction Hot Cutting Circular Saw Blades
Metal hot-cutting saw blades are made of the special saw steel developed by ourselves, through heat treatment and machining. the saw blade is with excellent synthetic mechanical performance such as high hardness on the tip of teeth, high wear resistance, thus it ensures safe and quick steel cutting under the condition of high speed rotating, it has become the high efficient cutting tool in a modern steel company.
The diameters range our company produces is from 800mm--2500mm.
| FRICTION CUTTING SAW BLADE FOR METAL | ||||
| 外径（￠D） | 外径（￠D1） | 厚度（b) | 中孔（￠d) | 齿数（Z） |
| 32″ | 800 | 5 | 110 | 180/220 |
| 33″ | 820 | 4.0/5.0 | 110 | 228/315 |
| 36″ | 900 | 5.0/6.0 | 110/300 | 180/220 |
| 40″ | 1000 | 5.0/6.0/7.0 | 160/300 | 240/320 |
| 44″ | 1100 | 6 | 300 | 198/340 |
| 48″ | 1200 | 6.0/7.0/8.0 | 160/300 | 220/276 |
| 52″ | 1300 | 6.0/9.0 | 340/360 | 216/340 |
| 60″ | 1500 | 7.0/8.0 | 300/360 | 248/276/318 |
| 64″ | 1600 | 7.0/8.0/9.0 | 300/480 | 288/440 |
| 66″ | 1650 | 9.0/10.0 | 400/500 | 350/410 |
| 68″ | 1700 | 9.0/10.0 | 320 | 588 |
| 72″ | 1800 | 9.0/10.0 | 400/550 | 297/370/600 |
| 80″ | 2000 | 10.0/12.0 | 500 | 275/380/600 |
| 84″ | 2100 | 13.0/14.0 | 500 | 400/600 |
| 88″ | 2200 | 14 | 400 | 384/380/580 |
| 100″ | 2500 | 15 | 500 | 400/580/660 |
| OTHER SIZES ARE AVAILABLE ON REQUEST! | ||||
Metal hot-cutting saw blades are made of the special saw steel developed by ourselves, through heat treatment and machining. the saw blade is with excellent synthetic mechanical performance such as high hardness on the tip of teeth, high wear resistance, thus it ensures safe and quick steel cutting under the condition of high speed rotating, it has become the high efficient cutting tool in a modern steel company.
The diameters range our company produces is from 800mm--2500mm.
Metal hot cutting saw blades are used in sawing ordinary carbon steel, bearing steel, high speed and tool steel and other profiles, bar steel, the cutting temperature is generally above 750℃, the cutting temperature for high alloy steel can be above 800℃.
