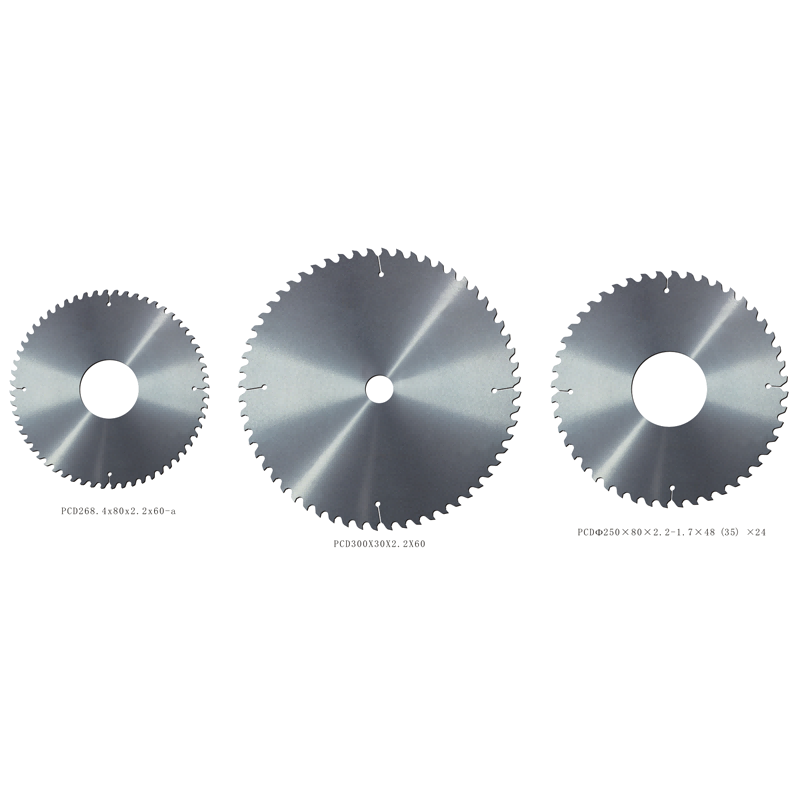

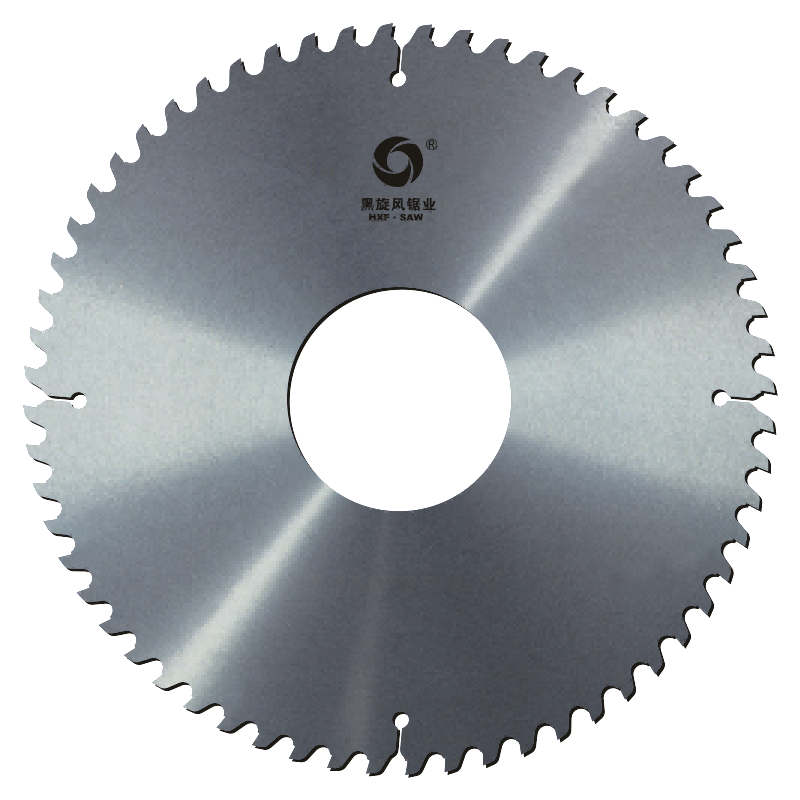

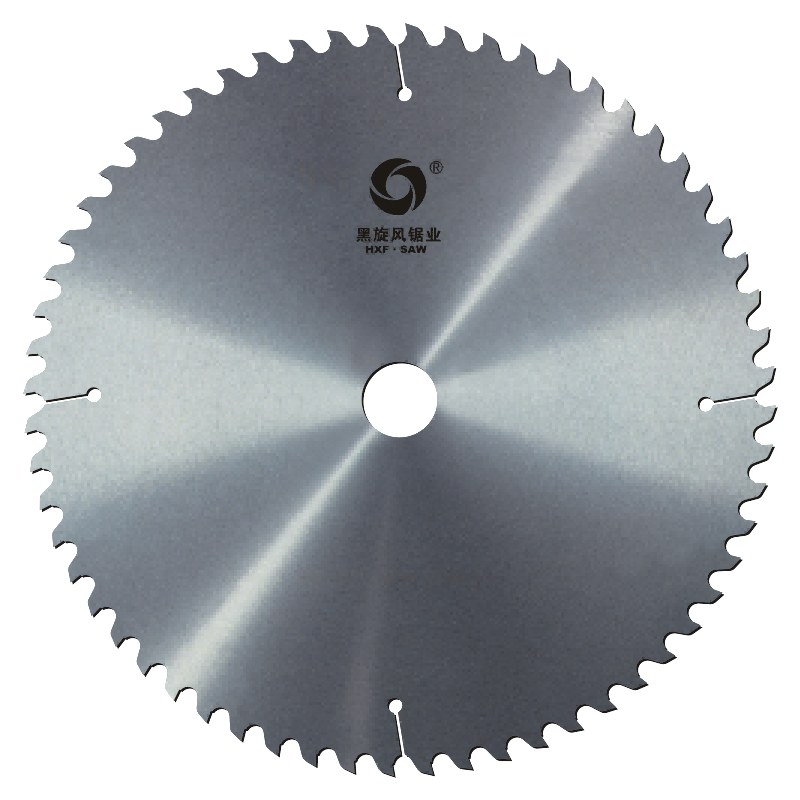

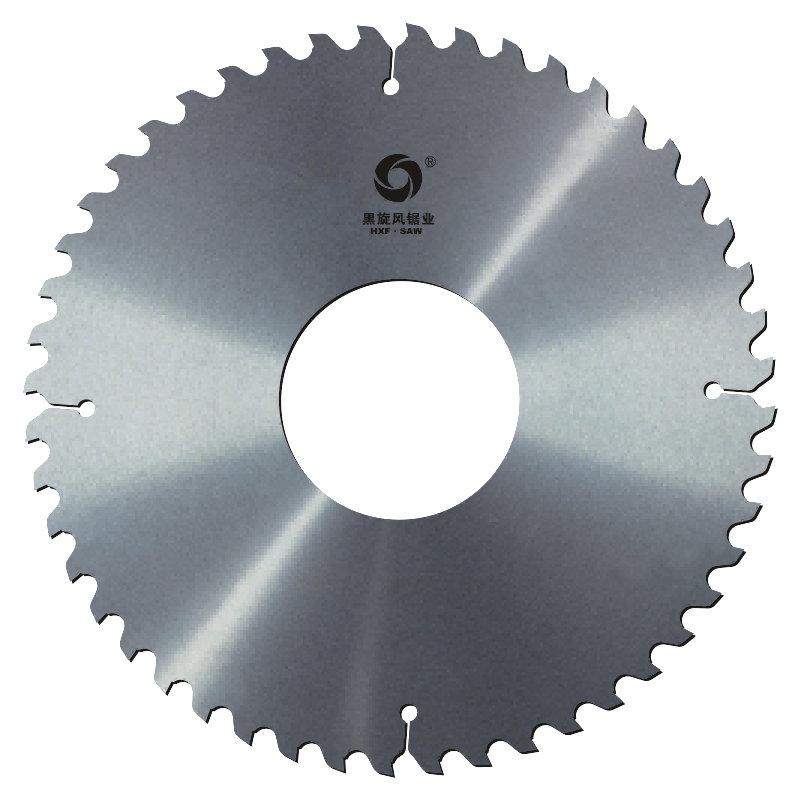

PCD SAW BLANKS (Diamond-Tipped Circular Saw Blank)
Feature:High precision PCD saw blanks manufactured by advanced carft and imported steel sheet.
Application :PCD saw blade range for beam saw, panel saw machines and angular saw machines. The characteristics required for a high quality diamond saw blade for both the cut and sizing of any kind of board, must be: primarily a perfect cut and long life at the most effective cutting speed.
| 硬度HRC43-46 | |||||||||||
| 规格Size | 外径Dia | 厚度Thick | 中孔Hole | 齿数Teeth | |||||||
| 4″ | 100 | 2.2 | 30 | 24/32 | |||||||
| 5″ | 125 | ||||||||||
| 6″ | 150 | ||||||||||
| 8″ | 200 | ||||||||||
| 9″ | 230 | 30/60 | |||||||||
| 10″ | 250 | 40/48 | |||||||||
| 12″ | 300 | 2.5 | 30/60/80 | 60/72/96 | |||||||
| 14″ | 350 | 2.8 | |||||||||
| 16″ | 405 | 2.8/3.0 | 25.4/30 | 100/120 | |||||||
| 18″ | 455 | 3.0/3.2 | |||||||||
| 说明:其他非标锯片基体,可根据客户要求订制， other sizes are available on request. | |||||||||||
