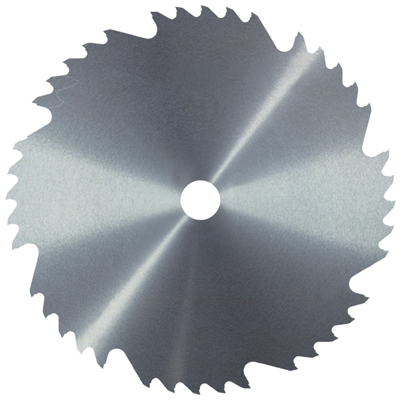

End Trim Unit for Panels With Banded Edges

Application: General use for veneer-trimming of doulbe-sided veneer and flakeboard. The saw blades for trimming rip saw are generally used for trimming and regulating of double-sided veneer board and medium density board.

Contact Now E-mail Telephone WhatsApp

Product Details

封边机、修边机锯片基体 End Trim Unit for Panels With Banded Edges
硬度HRC43-46
规格Size	外径Dia	厚度Thick	中孔Hole	齿数Teeth
4″	100	2.0/2.2/2.4	φ16	20
5″	125	2.2/2.4/2.5	φ20	12月24日
6″	150	2.2/2.4/2.5	φ25.4	30/36/48
7″	180	2.2/2.4/2.5	φ30	36/48/54
8″	200	2.2/2.4/2.5	φ32	48/54/60
9″	230	2.2/2.4/2.5	φ40	54/60
10″	250	2.2/2.4/2.5		40/48/60
12″	300	2.4/2.6/2.8		60/72
14″	350	2.6/2.8/3.2		60/72
14″	353	3.5		60/72
16″	403	3.5		72/80
18″	453	3.5	φ50.8	70
说明:其他非标锯片基体,可根据客户要求订制 other sizes are available on request.
