High Power Concrete Pavement Cutting Saw Blanks
In order to enhance the synthetical performance of the products,we optimize the design on the slots,teeth shape,and tension for on basis of traditional diamond saw blanks so that it can be equipped on a high power saw machine.
It is applicable for 35-65p saw machine drived by petrol engine,57p saw machine drived by diesel engine.
In order to enhance the synthetical performance of the products,we optimize the design on the slots,teeth shape,and tension for on basis of traditional diamond saw blanks so thatit can be equipped on a high power saw machine.
It is applicable for 35-65p saw machine drived by petrol engine,57p saw machine drived by diesel engine.

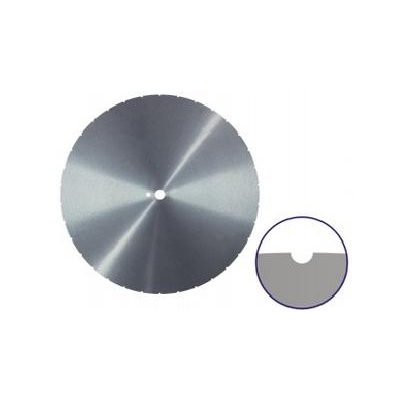

Saw blanks with semi-circular typeslots

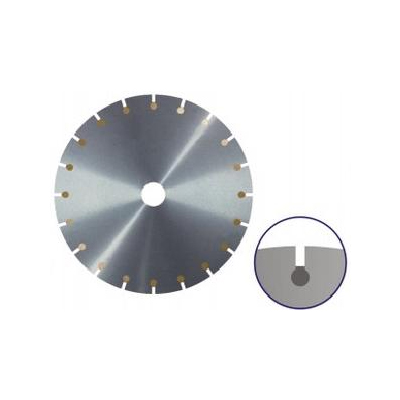

Circular saw blanks with rivets

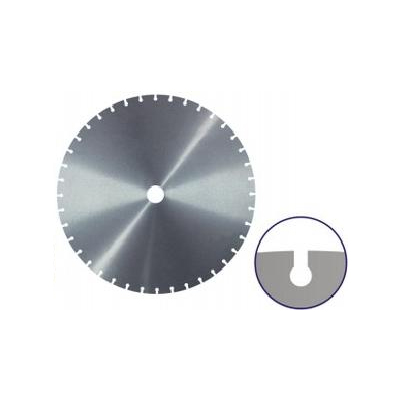

Circular saw blanks with high tension.
THE TABLEFOR SPECIFICATION OF HIGH POWER CONCRETE PAVEMENT CUTTING SAW BLANKS 硬度：激光焊接HRC36±3/高频焊接HRC43±2
| 型号 JYGQ | 规格 | 尺寸 D1 | 中孔 H | 厚度 | 齿数 z | 槽深 A | 槽宽 B | 法兰盘 Testing Flange |
| D | E | |||||||
| JYGMD 350 | 350 | 340 | 24 | 1.5M8 | 3 | 100 | ||
| JYGMD 400 | 400 | 390 | 28 | 1.5/18 | 3 | 125 | ||
| JYGMD 450 | 450 | 440 | 32 | 1.5/18 | 3 | 125 | ||
| JYGMD 500 | 500 | 490 | 22.23 | 36 | 1.5/18 | 3 | 125 | |
| JYGMD 600 | 600 | 590 | 25.4 35 50 60 | 42 | 1.5/18 | 3 | 150 | |
| JYGMD 650 | 650 | 640 | 2.2-4.5 | 45 | 1.5/18 | 3 | 175 | |
| JYGMD 700 | 700 | 690 | 50 | 1.5/18 | 3 | 175 | ||
| JYGMD 750 | 750 | 740 | 52 | 1.5/18 | 3 | 200 | ||
| JYGMD 800 | 800 | 784 | 52 | 15 | 7 | 200 | ||
| JYGMD 900 | 900 | 884 | 59 | 15 | 7 | 250 | ||
| JYGMD 1200 | 1200 | 1180 | 78 | 15 | 7 | 250 |
REMARK:1、The 1.5mm slots depth are for semi-circularslot saw blanks,the 18mm slots depth are for other saw blanks.
2、The blanks above 750mm are high tension saw blanks with"u"type wide slots.
3、You can customize otherslot type,central hole and laser-cutting line design.
