Saw Blank For Quarry-Cutting

THE RODUCTS’ ADVANTAGE

1，Thanks to the hardened and tempered special saw steel sheet, the whole piece of saw blank has a very good rigidity, as a result, the thickness of our quarry cutting blanks can be reduced by 2-3mm on basis of normal thickness.,

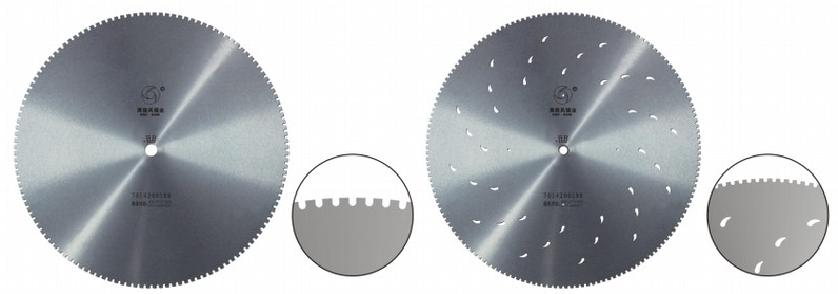

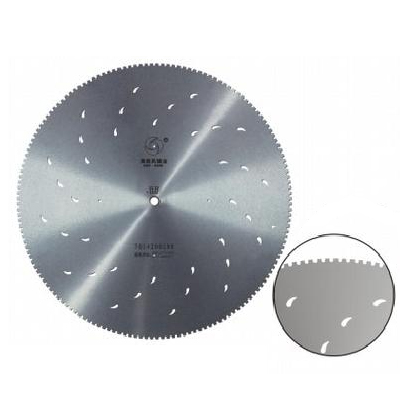

2，The hollowed holes distribute on the circle of the blanks regularly and reasonably, they enlarge the space of containing the cutting dregs, thus, they enhance the deslagging capability of the blanks, strengthen self-cooling function , they are applicable for lacking-cooling cutting and dry cutting. the hollowed holes can release the internal stress generated in the process of cutting, slow down the cutting deformation.,

A,Made from a whole piece of steel sheet with fine rigidity and better cooling effect, not easily deformed.

B,Strong deslagging capability, little vibration, saving segments.

C,Less in weight, saving power.

D,High efficiency of cutting

E,Long using life, reducing using cost.

Contact Now E-mail Telephone WhatsApp

Product Details

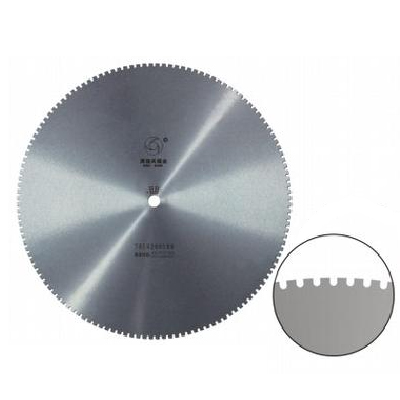

Standard single saw blank is installed on the saw machine for cutting slabs or trimming the edges of the slabs


THE TABLE FOR THE SPECIFICATION OF QUARRY-CUTTING SAW BLANKS

TTING SAW BLANKS Durometer:HRC36±4

型号 JYK	规格 D	尺寸 D1	中孔 H	厚度 E	齿数 z	槽深 A	槽宽 B	法兰盘 Flange
JYK2000	2000	1980			126	26	22
JYK2200	2200	2180			132	26	22
JYK2400	2400	2384			140	26	25	300
JYK2600	2600	2584	100	9月11日	140	26	26
JYK2800	2800	2784	120		148	26	26
JYK3000	3000	2984	150		160	30	30
JYK3300	3300	3284			156	30	30
JYK3600	3600	3584			180	30	30	400
JYK4200	4200	4184			200	35	32
JYK4600	4600	4584		10月12日	208	37	33
JYK4800	4800	4784			216	38	34

(单位：mm) 非标尺寸亦可生产Other sizes are available on request

THETABLEFORTHESPECIFICATIONOFQUARRY-CUTTNGSAWBLANKSFORSOFTSTONE(SANDSTONE,BLUESTONEANDSOON.)

Durometer:HRC40-43

型号 JYK	规格 D	尺寸 D1	中孔 H	厚度 E	齿数 Z	槽深 A	槽宽 B	法兰盘 esange
JYK700	700	690			40	18	12	175
JYK1000	1000	984			70	20	20	250
JYK1300	1300	1284	50		88	24	22	300
JYK1400	1400	1384	100	4.2-8.0	88/92	24	22	300
JYK1500	1500	1484	120		96	24	22	300
JYK1600	1600	1584			108	24	22	300
JYK1800	1800	1784			118	24	22	300

(单位：mm) 非标尺寸亦可生产Other sizes are available on request

The domestic market of saw blank for cutting soft stone(sandstone,blue stone)mainly located in JiangXi,ChongQing and Si Chuan provinces etc.
The saw blank for cutting soft stone (sandstone,bluestone)are produced by special steel,with a strictly controlled technical parameter of best balance,better side run out,good rigidity and high cutting efficiency.
