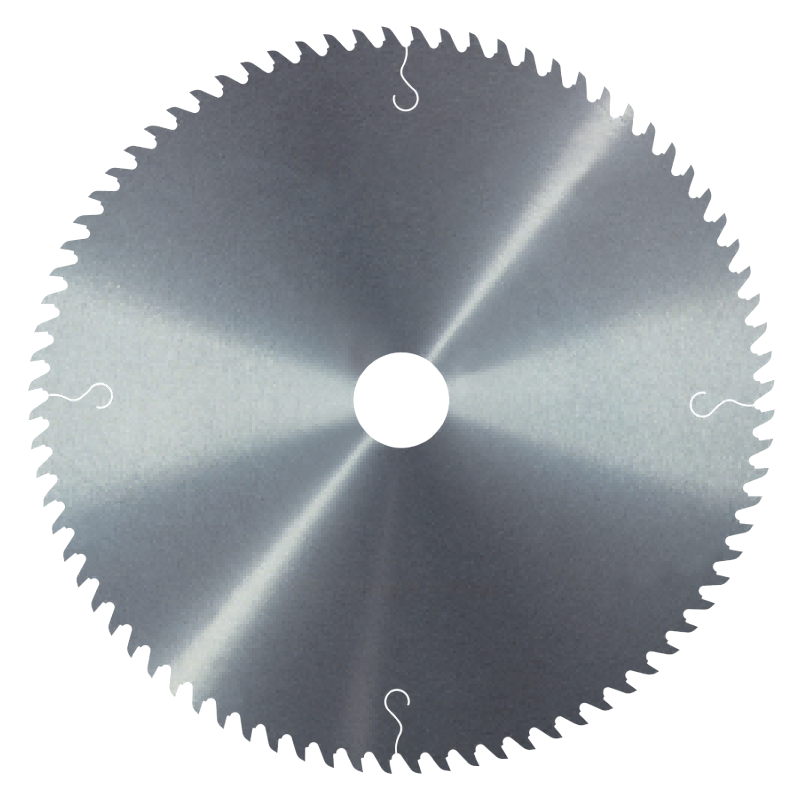

TCT Saw Blank For Aluminium Cutting
TCT Saw Blank For Non-Ferrous Metal & PVC Cutting
Applications: To Cut Drawn Products ,Tubes and Polymeric Panels. Suitable for Aluminum and Non-Ferrous Metals, Polymeric Materials, PVC Extruded Profiles.

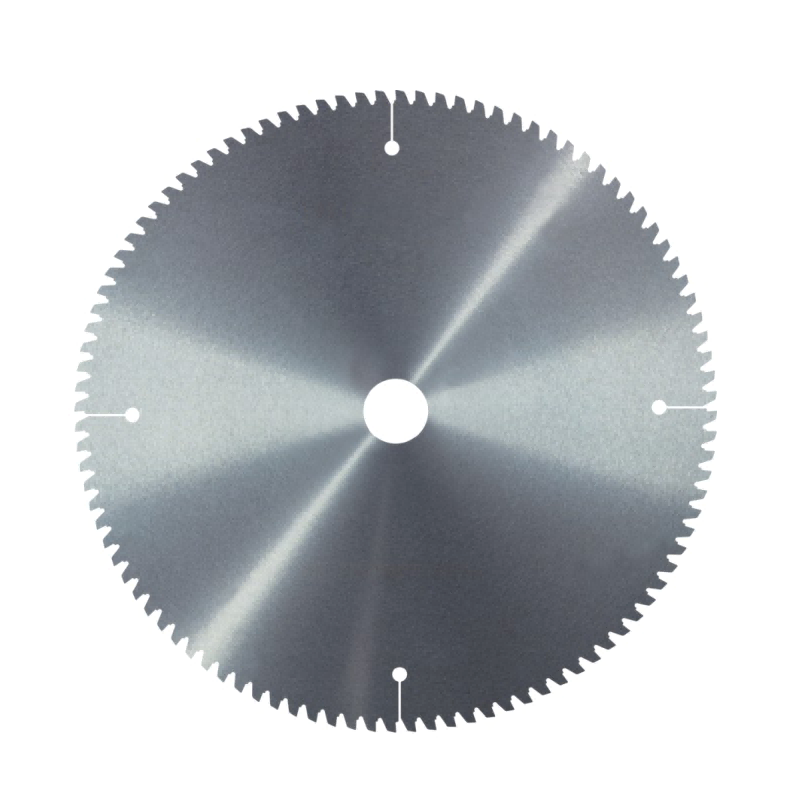

TCT Circular Saw Blank For Aluminium Cutting
Application: Used In The Process Of Aluminum Profile, Plastic Steel, Hard Plastics And Other Materials.
Product Details
TCT Saw Blank For Non-Ferrous Metal & PVC Cutting
Applications: To Cut Drawn Products ,Tubes and Polymeric Panels. Suitable for Aluminum and Non-Ferrous Metals, Polymeric Materials, PVC Extruded Profiles.
TCT Circular Saw Blank For Aluminium Cutting
Application: Used In The Process Of Aluminum Profile, Plastic Steel, Hard Plastics And Other Materials.
| 铝用硬质合金锯片基体 TCT SAW BLANK FOR ALUMINUM-CUTTING | |||||||||||
| 规格Size | 外径Dia | 厚度Thick | 中孔Hole | 齿数Teeth | |||||||
| 7″ | 178 | 1.5/2.2/2.4 | 30 | 48 | |||||||
| 10″ | 253 | 2.2/2.4/2.6 | 25.4/30 | 60/80/100/120 | |||||||
| 12″ | 303 | 2.4/2.6/2.8 | 25.4/30 | 60/80/96/100/120 | |||||||
| 14″ | 353 | 2.4/2.8/3.0 | 25.4/30 | 60/80/96/100/108/120 | |||||||
| 16″ | 403 | 2.8/3.0/3.2 | 25.4/30 | 80/96/100/120 | |||||||
| 18″ | 448 | 3.2/3.4/3.6/3.8 | 30 | 80/100/108/120/140 | |||||||
| 20″ | 498 | 3.4/3.6/3.8 | 30 | 80/100/120/140 | |||||||
| 22″ | 548 | 3.5/3.5 | 30 | 100/120/144 | |||||||
| 24″ | 598 | 3.8/4.0/4.5 | 30 | 100/120/144 | |||||||
| 26″ | 648 | 4.0/4.5 | 30 | 100/120/144 | |||||||
| 说明:其他非标锯片基体,可根据客户要求订制 other sizes are available on request. | |||||||||||
